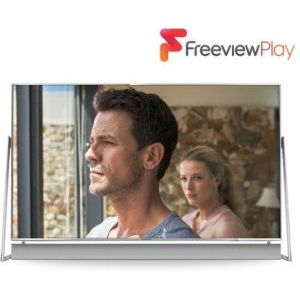

TV set PANASONIC TX-50DX802B





PANASONIC TX-50DX802B


PANASONIC TX-50DX802B

Product's rating

Rating: 0 / 5 points.

Rated 0 people.

PANASONIC TX-50DX802B - Technical data

Brand: PANASONIC
Display
Panel: 4K ULTRA HD/Cinema Display
Bright Panel: Super Bright Panel
Screen Resolution: 3,840 (W) x 2,160 (H)
Panel Drive: 4K 2000 Hz BMR IFC
Picture Mode: Dynamic/Normal/Cinema/True Cinema/THX 4K (Cinema/Bright Room)/Custom/Professional1/Professional2 (isfccc)
HDR*1: Y
Contrast: Supreme Contrast
Colour Space: Wide Colour Spectrum
4K Studio Master HCX+/HCX: Y
Local Dimming: Y
Adaptive Backlight Dimming:
THX Certified Display: Y
4K Pure Direct: Y
isf Mode: Y
3D: Y (Active)
Sound Quality
Surround: VR-Audio Master Surround 2.1
Speakers: 12 Train Prismatic Speaker, Quad Passive Radiator
Speaker Output: 40 W (10 W x 2 + 10 W x 2)
Dolby Audio*2: Y
Sound Mode: Standard/Music/Ambience/User
Smart Features
my Home Screen: Y (2.0)
Info Frame: Y
my Stream*3:
Voice Assistant
Voice Assistant: Y
Voice Guidance: Y
EPG: Y
On Screen Display Menu Languages: English
Twin HD Tuner: Y
Freeview Play/Freetime: Freeview Play/Freetime
Unique Processing Engine: Quad-Core Pro
Wireless LAN Built-in: Y
Panasonic Media Center (App): Y
Panasonic TV Remote Apps
Panasonic TV Remote Apps: Y
Swipe & Share: Y
Smart Calibration: Y
Internet Apps
Web Browser*4: Y (Firefox)
Internet Apps: Y
Easy Mirroring: Y
DLNA: Y (RUI2.0/DTCP-IP/DMP/DMR/DMS)
Bluetooth*5: Y (Keyboard/Mouse)
APT-X*6:
Media Player
Media Player: Y
Support Format: AVI/HEVC/MKV/WMV/MP4/M4v/FLV/3GPP/VRO/VOB/TS/PS, MP3/AAC/WMA Pro/FLAC/Apple Lossless/WAV, JPEG/MPO
Teletext Reception: 1500P
USB-HDD Recording (w/ Rewind live TV): Y
Multi Window: 2T PAP/PIP/PAT
Hotel Mode: Y
Game Mode: Y
VIERA Link (HDMI CEC): Y
Energy Data
Suppliers Trademark: Panasonic
Model ID: TX-50DX802B
Energy Efficiency Class: A
Visible Screen Size (diagonal): 126 cm
On mode Average Power Consumption*7: 82 W
Standby Power Consumption: 0.50 W
Off mode Power Consumption: 0.30 W
Power Supply: AC 220 - 240 V, 50/60 Hz
Ambient Sensor (CATS): Y
Design
Design Concept: Freestyle Design
Terminal
Digital Tuner Reception: DVB-T/T2/DVB-S2
Analogue Tuner: Y
HDMI
HDMI: 3 (side), 1 (rear)
HDMI (4K 60/50p with HDCP2.2): 4
Support Feature: Audio Return Channel (Input 2)
USB: 3 (1 side, 2 rear; USB 3.0 x 1, USB 2.0 x 2)
LAN Port: 1 (rear)
CI (Common Interface): 1 (CI Plus, Version 1.3)
SD Card:
Scart Connector:
Component Video Input shared with Composite: RCA phono type x 1 (rear)
Digital Audio Output (Optical): 1 (side)
Headphone Output: 1 (side)
GENERAL
Included Accessory*9: Touch Pad Remote / TV Remote
Dimensions (W x H x D) (w/o stand): 1115 x 647 x 35 mm
Dimensions (W x H x D) (with stand)*10: 1188 x 722 x 316 mm
Weight (w/o stand): 16.0kg (Display), 1.5kg (speaker)
Weight (with stand): 22kg
VESA Compatible: Y
VESA Dimension: 400 x 200
Outer Boxed Unit (W x H x D): 1340 x 830 x 420 mm
Total Boxed Weight: 31kg
NOTE: *1 ST2084 and ST2086 SMPTE standards*2 Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.*3 Viewable contents may vary depend on regions and services.*4 The Web Browser cannot display some web pages correctly. And viewable contents by VIERA Web Browser are subject to the following conditions;- viewable contents may vary depend on models,- viewable contents may differ from those for PC,- viewable contents may be limited.*5 HID (Human Interface Device Profile) compliant keyboards are available. *6 aptX® software is copyright CSR plc or its group companies. All rights reserved.The aptX® mark and the aptX logo are trademarks of CSR plc or one of its group companies and may be registered in one or more jurisdictions.*7 Based on IEC 62087 Ed.2 measurement method.*8 Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*9 Not all the accessories are listed here.*10 Dimension with recommended pedestal style.
